Double optical filter cartridge welding machine
Double optical filter cartridge welding machine
Description
Fiber laser, low power consumption, high stability, stable welding, optional laser source (1000 watts, 1500 watts, 2000 watts), dual horn output, simultaneous welding of valve ports and cover plates, one-time clamping One-time welding, high welding efficiency; double-station design, edge feeding, side welding, improve equipment utilization; fixture modular design, to achieve rapid switching of a variety of specifications.
Parameters
|
NO. |
NAME |
SPECIFICATION |
QTY |
BRAND |
|
I. Laser source |
||||
|
1 |
Laser |
2000W |
1set |
TXSTAR |
|
2 |
Fiber system |
|
1set |
TXSTAR |
|
II.External light path light guiding system and welding head |
||||
|
1 |
Energy splitting system |
|
1PCS |
Junlei |
|
2 |
Laser welding head |
Including monitoring |
2 set |
Junlei |
|
3 |
Welding fine adjustment mechanism |
50*50*50MM |
2 set |
Junlei |
|
III.Welding fixture |
||||
|
1 |
Filter cartridge special fixture |
|
2 |
Junlei |
|
2 |
Control System |
Mitsubishi |
1 |
Junlei |
|
IV.One-dimensional workbench |
||||
|
1 |
Workbench |
500MM |
1 |
Junlei |
|
2 |
Servo motor drive |
200W |
1 |
panisonic |
|
3 |
Welded head bracket |
|
1 |
Junlei |
|
V. |
Slow rise and fall system |
|
1 |
Junlei |
|
VI. |
Chiller |
|
1set |
Junlei matching |
Application
Sealing and welding the valve port and cover plate of the water purifier filter cartridge.

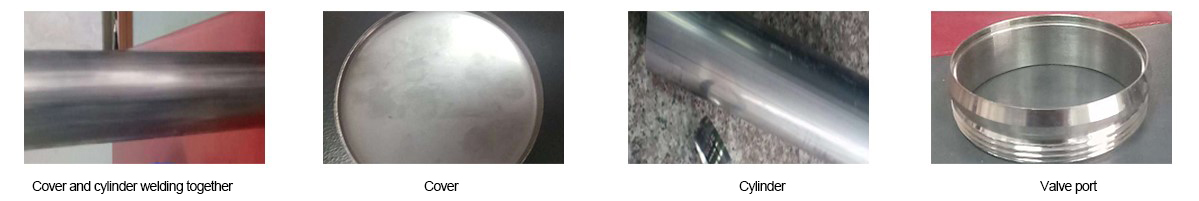

Samples
